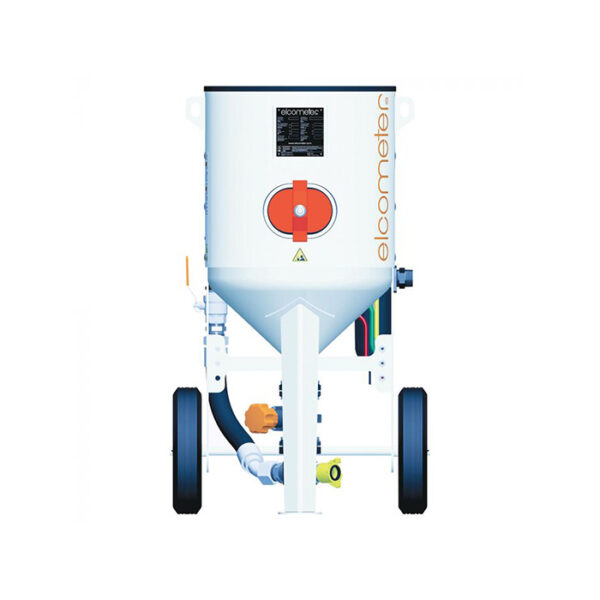

Elcometer 20100H Portable Abrasive Blast Machine – 100 litre
The Elcometer 20100H High Pressure Abrasive Blast Machine is ideal for mobile contractors requiring continuous high production blasting.
- Ideal for continuous sandblasting applications
- Heavy duty wheels for easy movement within a blast site
- Available with a range of grit valves to suit your sandblasting requirements
- Heavy duty 6mm (1/4“) construction
- Easy & fast to service
- Description
- PRODUCT RANGE
- DOCUMENTS & BROCHURES
- SPARE PARTS
Description
Enhance Your Performance
The Elcometer 20100H Portable Abrasive Blast Machine is engineered to work harder, last longer and be faster to maintain. For more information on the efficiency of the Elcometer 20100H Portable Blast Machine and how to maximise your up time, click here.
Safe & Reliable
Rugged, reliable and easy to use, the Elcometer 20100H Portable Abrasive Blast Machine & Valves are supplied with a full 12 month warranty and are engineered & tested to be incredibly efficient, durable and safe. For more information on the Elcometer 20100H Portable Blast Machines’ safety features, click here.
Elcometer Engineered
The Elcometer 20100H Portable Abrasive Blast Machine is manufactured to an industry leading specification and designed and engineered by Elcometer experts. For more information about the high quality components of the Elcometer blast pots, including the high flow pipework, precision grit valves and hardwearing mixer T’s, click here.
Elcometer 20100H High Pressure Portable Abrasive Blast Machine Kit 2 with Automatic General Valve – 15bar (217psi)
Kit includes:
- 20″ 100 litre (508mm, 3.53cu ft) Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m (65.6ft) Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- Automatic General Media Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
- 20m 11/2″ (65.6ft, 38mm) ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
- Externally Mounted Sieve and Lid
PED
- Maximum Working Pressure :15bar (217psi)
- Valve Type :AGV
- Part Number :M20100H-AGV2-B
Elcometer 20100H High Pressure Portable Abrasive Blast Machine Kit 2 with General Valve – 15bar (217psi)
Kit includes:
- 20″ 100 litre (508mm, 3.53cu ft) Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m (65.6ft) Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- General Media Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
- 20m 11⁄2” (65.6ft, 38mm) ID Blast Hose with Cast Iron Hose Couplings & Nylon Nozzle Holder
- Externally Mounted Sieve and Lid
PED
- Maximum Working Pressure :15bar (217psi)
- Valve Type :GV
- Part Number :M20100H-GV2-B
Elcometer 20100H High Pressure Portable Abrasive Blast Machine Kit 1 with Automatic General Valve – 15bar (217psi)
Kit includes:
- 20″ 100 litre (508mm, 3.53cu ft) Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m (65.6ft) Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- Automatic General Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
PED
- Maximum Working Pressure :15bar (217psi)
- Valve Type :AGV
- Part Number :M20100H-AGV1-B
Elcometer 20100H High Pressure Portable Abrasive Blast Machine Kit 1 with General Valve – 15bar (217psi)
Kit includes:
- 20″ 100 litre (508mm, 3.53cu ft) Abrasive Blast Machine
- Pressure Test Certificate
- RCV4000+ Remote Control Valve with Air Manifold, Exhaust and Silencer
- 20m (65.6ft) Pneumatic Control Hose and Deadman’s Handle (DMHII)
- Choke Valve and Pusher Line
- General Valve with Mixer T and Metal Pot Coupling
- Moisture Separator
PED
- Maximum Working Pressure :15bar (217psi)
- Valve Type :GV
- Part Number :M20100H-GV1-B
Blast Machine – Instruction Manual
Elcometer 20100 Abrasive Blast Machine – 12bar (174psi) – Data Sheet
Elcometer 20100 Abrasive Blast Machine – 12bar (174psi) – Data Sheet (ASME Compatible)
Blast Machine – Instruction Manual (ASME Compatible)
| Elcometer 20100H Portable Abrasive Blast Machine Spare Parts | |||||||
| Item | Part Number | Description | |||||
| 1 | MT28622 | Pop Up Valve | |||||
| 2 | MT28631-4 | 25mm (1″) Pop Up Shaft for Elcometer 20100H (122mm) (4.8″) | |||||
| 3 | MT29661 | 25mm (1″) Female 90° Equal Elbow | |||||
| 4 | MT29663 | 38mm (11⁄2“) Hex Nipple | |||||
| 5 | MT28617 | Moisture Separator Assembly | |||||
| 6 | MT29662 | 38mm (11⁄2“) Male/Male Union Taper Seat | |||||
| 7 | MT29664 | 6mm (1⁄4“) Bulkhead Connector (x3) | |||||
| 8 | MT29716 | Elcometer 20100H Twin Airline Hose Assembly (Yellow & Green) | |||||
| 9 | MT29717 | Airline Assembly for Elcometer 20100H (Red) | |||||
| 10 | MT28627-5 | Pop Up Valve O-Ring (x5) | |||||
| 11 | MT31073 | Protective Edging Strip Kit (2.7m) (8.9ft) | |||||
| 12 | MT29667 | Spring Cotter Pin Type E (x3) | |||||
| 13 | MT29719 | Short Deflector Plate Spacer – 25mm (x3) (1″) | |||||
| 14 | MT29720 | Long Deflector Plate Spacer – 51mm (x3) (2″) | |||||
| 15 | MT29670 | Deflector Plate | |||||
| 16 | MT28629-3 | Deflector Plate Shaft – 82mm (3.2″) (x3) | |||||
| 17 | MT29672 | 25mm (1″) Backnut (Recessed) | |||||
| 18 | MT29673 | 25mm (1″) Female/Female Union Taper Seat | |||||
| 19 | MT29679 | 25mm (1″) Hex Nipple | |||||
| 20 | MT29680 | 25mm (1″) Exhaust T Assembly (complete with MT29681 Exhaust Plug) | |||||
| 21 | MT29681 | 25mm (1″) Exhaust Plug | |||||
| 22 | MT29718 | 25mm (1″) Pipe for Elcometer 20100H (118mm) (4.6″) | |||||
| 23 | MT29683 | 25mm (1″) Socket | |||||
| 24 | MT29704 | 25mm (1″) Male/Female Equal Union Taper Seat | |||||
| 25 | MT29682 | 25mm (1″) Pipe for Elcometer 20100H (98mm) (3.9″) | |||||
| 26 | MT29706 | 25mm (1″) Male/Female 90° Elbow | |||||
| 27 | MT29707 | 25 x 38mm Reducing Bush (1″ to 11⁄2“) | |||||
| 28 | MT28599 | 19mm (3⁄4“) Reinforced Union Elbow | |||||
| 29 | MT29688 | 19mm (3⁄4“) Hex Nipple | |||||
| 30 | MT29465 | Elcometer RCV4000+ Remote Control Valve | |||||
| 31 | MT29656 | Petcock Valve Assembly – (Red Handle) | |||||
| 32 | MT30122-5 | 38mm (11⁄2“) Male/Female Equal Union Taper Seat | |||||
| 33 | MT29708 | 38mm (11⁄2“) Equal Pitcher T | |||||
| 34 | MT30094 | 38mm (11⁄2“) Choke Valve Handle | |||||
| 35 | MT29177 | 38mm (11⁄2“) Choke Valve Assembly (include MT30094 Choke Valve Handle) | |||||
| 36 | MT29710 | 38mm (11⁄2“) 60° Cone Male/Male Adaptor | |||||
| 37 | MT29658 | 6mm (1⁄4“) Ball Valve Assembly – (Black Handle) | |||||
| 38 | MT29660 | 6mm (1⁄4“) Airline Ball Valve Assembly (Black Handle) | |||||
| 39 | MT28597 | Exhaust Silencer Assembly | |||||
| 40 | MT29692-3 | Protection Guard for Elcometer 20100H | |||||
| 41 | MT28616 | Elcometer Inspection Hatch Door for Elcometer 20100H | |||||
| 42 | MT28613 | ElcoFit™ Door Sealing Gasket | |||||
| 43 | MT29695 | Elcometer Inspection Door Hatch Bolt – M16 x 110mm | |||||
| 44 | MT28615 | Inspection Hatch Door Yoke | |||||
| 45 | MT29696 | M16 Hexagon Flanged Nut | |||||
| 46 | MT28637 | Ø350mm (13.8″) Diameter Wheel (x1) | |||||
| 47 | MT29697 | Flat Washer (x8) | |||||
| 48 | MT29698 | Split Cotter Pin (x4) | |||||
| – | MT29490-4 | Elcometer RCV4000+ & Pipework Assembly Service Kit (contains items in orange) | |||||
| – | MT29180 | Elcometer Safety Label Kit | |||||
