Elcometer 236 DC Holiday Detector
Elcometer 236 DC Holiday Detector has a handy carrying case for users to carry the probe handle and accessories. The device gives the user full control of voltage and sensitivity settings and is available in two versions, 15kV and 30kV. Each unit is supplied in a carrying case containing a probe holder and an additional (optional) external rechargeable battery pack that doubles the available testing time. An accessory bag with an additional rechargeable battery (optional) can also be attached to the carrying case. This extends the operating time without the need to recharge the unit.
- Description
- PRODUCT RANGE
- TECHNICAL SPECIFICATION
- DOCUMENTS & BROCHURES
Description
Elcometer 236’s handy carrying case allows the probe handle and accessories to be attached to the front, making the Elcometer 236 holiday ideal for field or laboratory work.
Elcometer 236 gives the user full control of voltage and sensitivity settings and is available in 2 versions, 15kV and 30kV.
Each unit is supplied in a carrying case that carries a probe holder and an additional (optional) external rechargeable battery pack that doubles the available testing time.
An accessory bag with an additional rechargeable battery (optional) can also be attached to the carrying case. This extends the operating time without the need to recharge the unit.
- Robust and fully portable
- Audible and visual alarms for noisy environments
- Supplied with flat brush probe
- Output voltage or current digital display
- Adjustable sensitivity
- Available in 15kV and 30kV options with fully adjustable output voltage
- Ideal for testing on large/tall structures

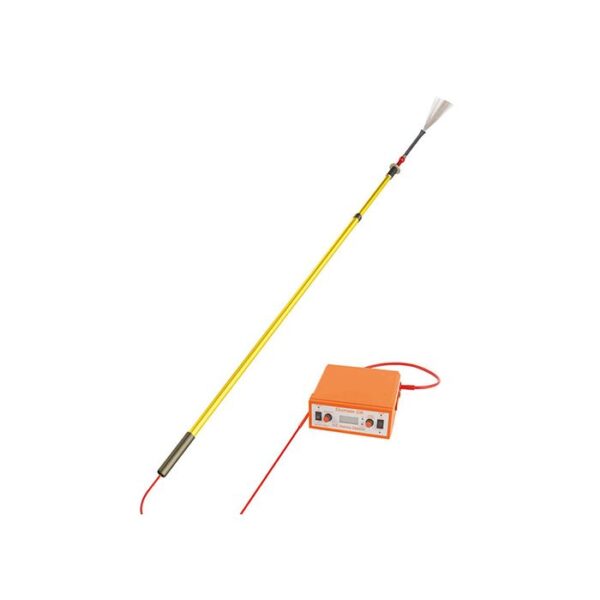

Due to its unique design, the probe handle can be replaced with a telescopic probe handle. The measuring distance can be extended to almost 4m (13″). Ideal for testing on large and tall structures.
Elcometer 236 15kV Holiday Detector The Elcometer 236 Holiday Detector provides high voltage porosity testing to detect pits, flaws, holes, etc. in a wide variety of non-metallic coatings. This model comes with an approximate thickness range of 0 – 3.75mm (0 – 150mils) and has a voltage output of 0.5 – 15kV in 100V steps.
|
Elcometer 236 30kV Holiday Detector The Elcometer 236 Holiday Detector provides high voltage porosity testing to detect pits, flaws, holes, etc. in a wide variety of non-metallic coatings. This model comes with an approximate thickness range of 0 – 7.5mm (0 – 300mils) and has a voltage output of 0.5 – 30kV in 100V steps.
|
| Elcometer 236 – 15kV | Elcometer 236 – 30kV | Certificate | |
| Part Number | D236–15KV | D236–30KV |  |
| Part Number with Certificate | D236–15KVC | D236–30KVC |  |
| Voltage Output | 0.5 – 15kV in 100V steps | 0.5 – 30kV in 100V steps | |
| Display Resolution | 0.01kV | 0.1kV | |
| Approximate Thickness Range | 0 – 3.75mm (0 – 150mils) | 0 – 7.5mm (0 – 300mils) | |
| Alarms | Audible & Visual | ||
| Operating Temperature | 0°C to 50°C (32°F to 120°F) | ||
| Power Supply | 12V internal rechargeable battery | ||
| Battery Life (approximate) | 10/12 hours continuous use, 20/24 hours with the optional external battery pack | ||
| Dimensions | 200 x 170 x 70mm (6 x 7 x 3”) | ||
| Weight | 2.8kg (6lb 3oz) | ||
| Packing List | Elcometer 236, probe handle and lead, band brush probe, 2m (79”) & 10m (394”) signal return/earth leads, battery charger with 3 mains cables (UK, EUR and US), carry case, transit case and operating instructions | ||
