Elcometer MTG Ultrasonic Material Thickness Gauges is a measuring instrument for a wide range of applications with the features and functionality required for material thickness measurement. This meter’s auto-recognition feature ensures the correct probe is identified when the transducer is changed, and is ideal for measuring a large surface area with its scan mode at 16 Hz.

User-selectable reading resolution can be set to 0.1mm (0.01″) or 0.01mm (0.001″). In addition, the MTG has Pulse Eco (PE), Eco Eco ThruPaint™ and Velocity (VM) measurement modes, and Hi&Lo limit indicators to show problem areas. Some MTG devices are supplied as devices only and the converter must be ordered separately. Up to 100,000 readings can be stored in up to 1,000 sequential groups, while ensuring maximum accuracy thanks to the integrated zero disk. MTG is also user-friendly with its selectable 4.8.16Hz reading rate (4.8.16 readings per second).

Categories: ,
OFFER REQUEST

Description

Intelligent

User defined limits for pass/fail indication

Users can set upper and lower limits for audible and visual successful/permanent alerts. Limits can be set for individual readings or for each batch.

Definite

A range of calibration options for accuracy and efficiency

MTG gauges have a number of calibration options, including the 1-Point calibration method. Users can also choose from 39 preset materials on the gauge or save up to three calibrations in memory.

Multidirectional

Measures uncoated and coated surfaces

Flexible and easy to use, the Elcometer MTG series can measure not only uncoated surfaces, but also coated surfaces. When using the Echo ThruPaint™ Mode (EE), overlays up to 2 mm (80 mil) are disregarded.

Wireless connection

Connect to any PC, Android™ or iOS mobile device

Compatible with both the ElcoMaster® PC and the ElcoMaster® Mobile App, the readings can be downloaded to PC, iOS or Android™ devices via USB or Bluetooth® for further analysis and reporting.

Customizable

Select and customize the reading screen

The Elcometer MTG series features a choice of display modes that allow the user to choose the one that best suits their needs: Readings, Selected Statistics, Bar Chart, Worksheet, B-Scan and Differential Mode.

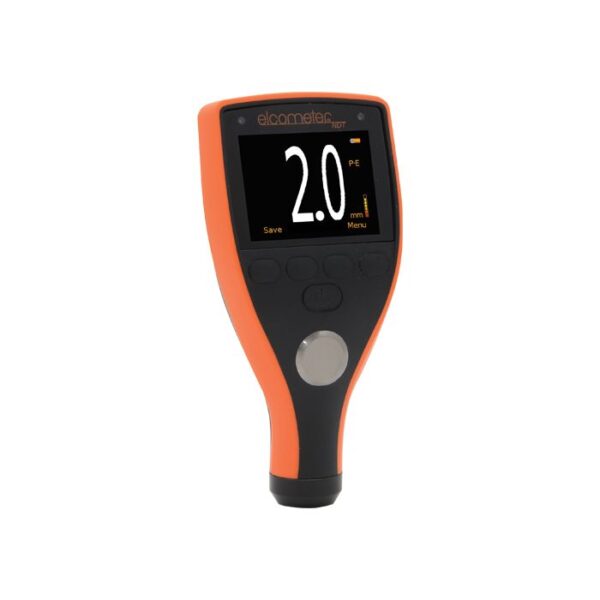

Elcometer MTG2 Ultrasonic Material Thickness Gauge

With automatic transducer recognition which ensures correct probe identification even when the transducer is changed, a measurement rate of 4Hz (4 readings per second) and integral zero disc ensuring maximum accuracy of ±1%, the MTG2 is ideal for taking basic ultrasonic thickness measurements.

  • Part Number Includes: Gauge, complete with 5MHz ¼” right angle dual element transducer
  • Part Number : MTG2-TXC
  • Certification : Calibration Certificate
Elcometer MTG4 Ultrasonic Material Thickness Gauge
With a choice of calibration options and measurement modes, the MTG4 is ideal for taking readings on a wide range of coated and uncoated materials.
  • Part Number Includes: Gauge Only
  • Part Number : MTG4
  • Certification : Calibration Certificat
Elcometer MTG4 Ultrasonic Material Thickness Gauge
With a choice of calibration options and measurement modes, the MTG4 is ideal for taking readings on a wide range of coated and uncoated materials.
  • Part Number Includes: Gauge, complete with 5MHz ¼” right angle dual element transducer
  • Part Number : MTG4-TXC
  • Certification : Calibration Certificate
Elcometer MTG6DL Ultrasonic Material Thickness Gauge
With a choice of calibration options, measurement modes – including high speed scan mode, display options and data-logging, the MTG6 is ideal for taking readings on a wide range of coated and uncoated materials and downloading data for further analysis and reporting.
  • Part Number Includes: Gauge Only
  • Part Number : MTG6DL
  • Certification : Calibration Certificate
Elcometer MTG6DL Ultrasonic Material Thickness Gauge
With a choice of calibration options, measurement modes – including high speed scan mode, display options and data-logging, the MTG6 is ideal for taking readings on a wide range of coated and uncoated materials and downloading data for further analysis and reporting.
  • Part Number Includes: Gauge, complete with 5MHz ¼” right angle dual element transducer
  • Part Number : MTG6DL-TXC
  • Certification : Calibration Certificate
Elcometer MTG8BDL Ultrasonic Material Thickness Gauge
The MTG8 is the top of the range gauge with all the features and functionality necessary for measuring material thickness and velocity on virtually any material and for a wide range of applications.
  • Part Number Includes: Gauge Only
  • Part Number : MTG8BDL
  • Certification : Calibration Certificate
Elcometer MTG8BDL Ultrasonic Material Thickness Gauge
The MTG8 is the top of the range gauge with all the features and functionality necessary for measuring material thickness and velocity on virtually any material and for a wide range of applications.
  • Part Number Includes: Gauge, complete with 5MHz ¼” right angle dual element transducer
  • Part Number : MTG8BDL-TXC
  • Certification : Calibration Certificate
Part Number
Gauge Only		Complete with 5MHz ¼”
right angle dual element transducer		DescriptionCertificate
MTG2-TXCElcometer MTG2 Ultrasonic Material Thickness Gauge
        Calibration Certificate supplied as standard
MTG4MTG4-TXCElcometer MTG4 Ultrasonic Material Thickness Gauge
        Calibration Certificate supplied as standard
MTG6DLMTG6DL-TXCElcometer MTG6DL Ultrasonic Material Thickness Gauge
        Calibration Certificate supplied as standard
MTG8BDLMTG8BDL-TXCElcometer MTG8BDL Ultrasonic Material Thickness Gauge
        Calibration Certificate supplied as standard
Model NumberMTG2MTG4MTG6MTG8
Measurement Range1
Pulse Echo (PE)0.63 – 500mm (0.025 – 19.999”)0.63 – 500mm (0.025 – 19.999”)0.63 – 500mm (0.025 – 19.999”)0.63 – 500mm (0.025 – 19.999”)
Echo Echo ThruPaint™ (EE)2.54 – 25.4mm (0.100-1.0”)2.54 – 25.4mm (0.100-1.0”)2.54 – 20.00mm (0.100-0.787”)
Velocity Mode (VM)1,250-10,000m/s (0.0492 – 0.3937in/μs)1,250-10,000m/s (0.0492 – 0.3937in/μs)1,250-10,000m/s (0.0492 – 0.3937in/μs)
Measurement Accuracy2
Pulse Echo (PE)±0.1mm (0.63-19.99mm)
±0.5% (20.00-500.00mm)		±0.1mm (0.63-19.99mm)
±0.5% (20.00-500.00mm)		±0.05mm (0.63-9.99mm)
±0.5% (10.00-500.00mm)
±0.004” (0.025-0.393”)
±0.5% (0.394-20.00”)		±0.05mm (0.63-9.99mm)
±0.5% (10.00-500.00mm)
±0.004” (0.025-0.393”)
±0.5% (0.394-20.00”)
Echo Echo ThruPaint™ (EE)±0.1mm (2.54-25.4mm)±0.05mm (2.54-9.99mm)
±0.5% (10.00-20.00mm)
±0.004” (0.100-0.393”)
±0.5% (0.394-0.787”)		±0.05mm (2.54-9.99mm)
±0.5% (10.00-20.00mm)
±0.004” (0.100-0.393”)
±0.5% (0.394-0.787”)
Operating Temperature-10 to 50°C (14 to 122°F)
Power Supply2 x AA batteries
Battery Life3Alkaline: 15 hours Lithium: 28 hours
Gauge Weight210g (7.4oz) – including batteries, without transducer
Gauge Dimensions145 x 73 x 37mm (5.7 x 2.84 x 1.46”), without transducer
Packing ListElcometer MTG2 Ultrasonic Material Thickness Gauge, 5MHz ¼” right angle dual element transducer, ultrasonic couplant, carry pouch, screen protector, wrist harness, 2 x AA batteries, operating instructions, test certificate & 2 year warranty extension card

Elcometer MTG4 Ultrasonic Material Thickness Gauge, 5MHz ¼” right angle dual element transducer (MTG4-TXC only), ultrasonic couplant, carry pouch, screen protector, wrist harness, 2 x AA batteries, operating instructions, test certificate & 2 year warranty extension card

Elcometer MTG6 Ultrasonic Material Thickness Gauge, 5MHz ¼” right angle dual element transducer (MTG6DL-TXC only), ultrasonic couplant, plastic transit case, 3 x screen protectors, wrist harness, 2 x AA batteries, operating instructions, calibration certificate, ElcoMaster® software CD & USB cable

Elcometer MTG8 Ultrasonic Material Thickness Gauge, 5MHz ¼” right angle dual element transducer (MTG8BDL-TXC only), ultrasonic couplant, plastic transit case, 3 x screen protectors, wrist harness, 2 x AA batteries, operating instructions, calibration certificate, ElcoMaster® software CD & USB cable



Elcometer MTG2 & MTG4 Ultrasonic Thickness Gauges Multi-Lingual Instruction Manual
Elcometer MTG6 & MTG8 Ultrasonic Thickness Gauges Multi-Lingual Instruction Manual
Elcometer MTG Ultrasonic Thickness Gauges Datasheet
Elcometer MTG2 & MTG4 Ultrasonic Thickness Gauges Declaration of Conformity
Elcometer MTG6 & MTG8 Ultrasonic Thickness Gauges Declaration of Conformity
Elcometer Ultrasonic Couplant (Clear) Material Safety Data Sheet
Elcometer Ultrasonic Couplant (Blue) Material Safety Data Sheet
Elcometer Ultrasonic Couplant (High Temperature) Material Safety Data Sheet; Part Number T92015874X
Elcometer Ultrasonic Couplant (High Temperature) Material Safety Data Sheet; Part Number T92024034-9
Typical Range Of Elcometer MTG PTG Transducers On Various Materials
