Çok yönlü Elcometer 319 çiğlenme noktası ölçer, aşağıdaki parametreleri ölçer ve kaydeder;
|

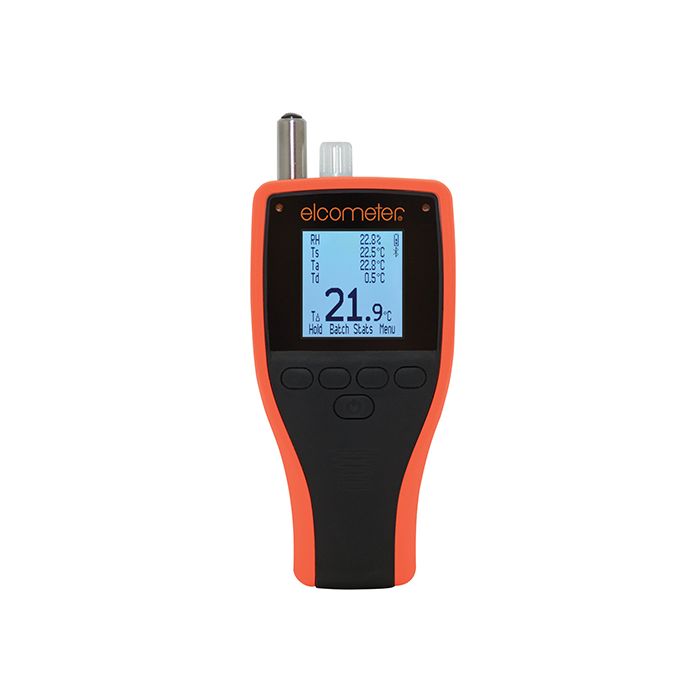

Elcometer 319 Dewpoint Meter (Model S)
The rugged Elcometer 319 Dewpoint Meter is designed to measure and record all relevant climatic parameters required to determine whether the conditions are suitable for painting.
|
|
Elcometer 319 Dewpoint Meter (Model T)
The rugged Elcometer 319 Dewpoint Meter is designed to measure and record all relevant climatic parameters required to determine whether the conditions are suitable for painting.
|
| Model | Model S | Model T | Certificate |
| Part Number | G319—-S | G319—-T |
 |
| Reading Parameters – RH, Ta, Ts (Te6), Td, TΔ, Tdb, Twb1, SH1 | |||
| Statistics – number of readings, standard deviation, mean, coefficient of variation, minimum, maximum | |||
| Dustproof & waterproof with fully sealed sensors – equivalent to IP66 | |||
| Integral Magnets – secure the gauge during logging | |||
| High/Low Limits – audible, visual, red/green LED alarms can be set against any or all parameters | |||
| Multilingual Menus | |||
| Backlight – user selectable | |||
| K-Type Connector for external probes | |||
| Memory – with reading and statistic review | Last 10 records | 25,000 records in 999 batches | |
| Manual Logging | |||
| Interval Logging2 | Adjustable between 1 second and 24 hours | ||
| *Data Output* | |||
| USB | |||
| Bluetooth® to computer, Android™ & iOS4 devices | |||
| ElcoMaster® software & USB cable | |||
| Temperature Range | Accuracy | Resolution | |
| Gauge5 | -20 to +80°C (-4 to +176°F) | ±0.5°C (±1°F) | 0.1°C (0.1°F) |
| Air Temperature (Ta) | -20 to +80°C (-4 to +176°F) | ±0.5°C (±1°F)7 | 0.1°C (0.1°F) |
| Surface Temperature (TS) | -20 to +80°C (-4 to +176°F) | ±0.5°C (±1°F) | 0.1°C (0.1°F) |
| External K-Type Thermocouple (Te) | -40 to +200°C (-40 to+392°F) | ±0.5°C (±1°F)6 | 0.1°C (0.1°F) |
| Relative Humidity (RH) | 0 to 100%RH | ±3%RH3 | 0.1% |
| Gauge & LCD Operating Range | -20°C to +80°C (-4°F to +176°F) | ||
| Power Supply | 2 x AA batteries or via USB Cable | ||
| Battery Life | Manual Mode: Greater than 40 hours (Backlight Off) Interval Logging: up to 400 hours (1 reading every 10 minutes) |
||
| Dimensions | 180 x 75 x 35mm (7 x 3 x 1.4”) | ||
| Weight | 300g (0.66lb) | ||
| Packing List | Elcometer 319 Dewpoint Meter, 2 x AA batteries, wrist strap, carry case, calibration certificate, USB cable8, | ||
