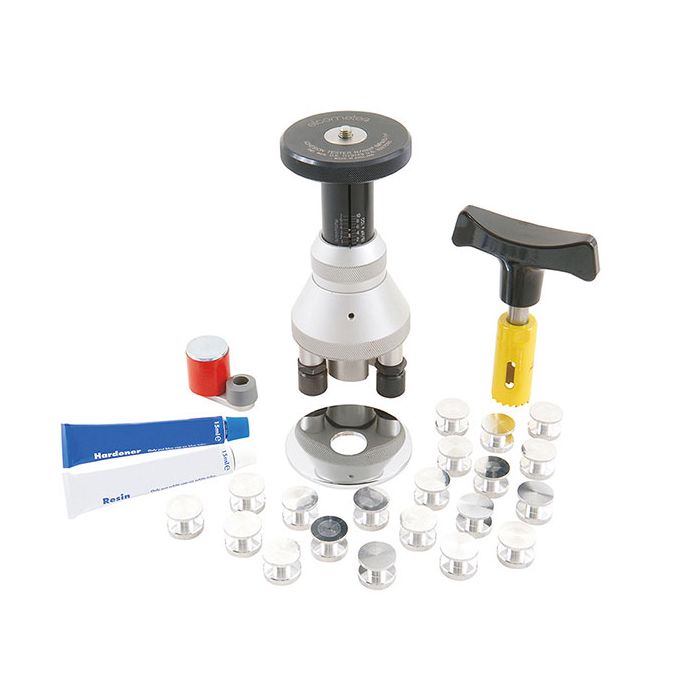

Elcometer 106 Pull-Off Yapışma Test Cihazı
Elcometer 106 Yapışma Testi için köprü döşeme üzerine boya veya plazma spreyi, çelik, alüminyum, beton vb. Kaplamalar için başvurularda bulunur.

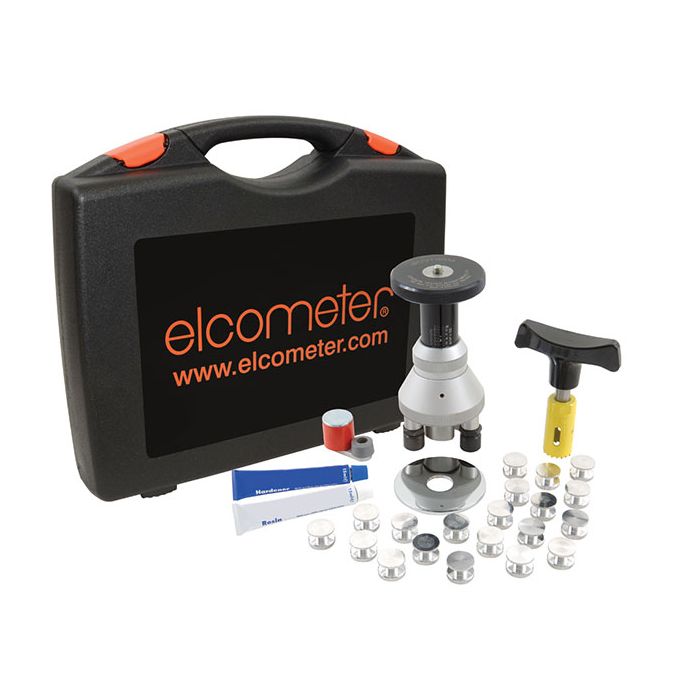

- Taşıma çantası ile birlikte tedarik edilir-saha testleri için ideal
- Elle çalıştırılı-güç kaynağı gerekmez
- EN13144 ve ISO 4624 testleri için kesici içerir
Elcometer 106 Yapışma Test Yöntemi
Bir yapıştırıcı kullanılarak kaplamaya bir test dollysi bağlanır. Elcometer 106 yapışma test cihazı, gerilim arttıkça dolly’e bir kaldırma kuvveti uygulayan yay düzenine sahiptir.
Kaplama yüzeyden çekildiğinde, ölçekteki gösterge, dolly’i çıkarmak için gerekli birim alan başına düşen kuvvet cinsinden ifade edilen yapışma kuvvetinin sayısal değerini gösterir.
Arıza durumu tespiti için dolly yüzeyi incelenmesi gerekmektedir.
Düşük değerlerde veya pürüzlü yüzeylerde hassasiyeti arttırmak için 40mm (1,52″) dolly mevcuttur. 40mm dolly kullanırken ölçek okumasını 4’e bölünüz.
- PRODUCT RANGE
- TECHNICAL SPECIFICATION
- DOCUMENTS & BROCHURES
Elcometer 106 Adhesion Tester – Scale 1 The Elcometer 106 Pull-Off Adhesion Tester Scale 1 is easy to operate and fully portable with an MPa (N/mm²) of 0.5 – 3.5, a Range of 5 – 35 and a psi of 72 – 500.
|
Elcometer 106 Adhesion Tester – Scale 2 The Elcometer 106 Pull-Off Adhesion Tester Scale 2 is easy to operate and fully portable with an MPa (N/mm²) of 1 – 7.0, a Range of 10 – 70 and a psi of 145 – 1000.
|
Elcometer 106 Adhesion Tester – Scale 3 The Elcometer 106 Pull-Off Adhesion Tester Scale 3 is easy to operate and fully portable with an MPa (N/mm²) of 3 – 15, a Range of 30 – 150 and a psi of 435 – 2000.
|
Elcometer 106 Adhesion Tester – Scale 4 The Elcometer 106 Pull-Off Adhesion Tester Scale 4 is easy to operate and fully portable with an MPa (N/mm²) of 5 – 22, a Range of 50 – 220 and a psi of 725 – 3200.
|
Elcometer 106 Adhesion Tester – Scale 5 The Elcometer 106 Pull-Off Adhesion Tester Scale 5 is easy to operate and fully portable with an MPa (N/mm²) of 0.05 – 0.2, a Range of 0.5 – 2.0 and a psi of 7.25 – 30.
|
Range | |||||||||||||||||||||
Part Number | Description | MPa (N/mm²) | kg/cm² | Psi | Certificate | ||||||||||||||||
F106—-1 | Elcometer 106 Adhesion Tester – Scale 1 | 0.5 – 3.5 | 5 – 35 | 72 – 500 | ![]() | ||||||||||||||||
F106—-2 | Elcometer 106 Adhesion Tester – Scale 2 | 1 – 7.0 | 10 – 70 | 145 – 1000 | ![]() | ||||||||||||||||
F106—-3 | Elcometer 106 Adhesion Tester – Scale 3 | 3 – 15 | 30 – 150 | 435 – 2000 | ![]() | ||||||||||||||||
F106—-4 | Elcometer 106 Adhesion Tester – Scale 4 | 5 – 22 | 50 – 220 | 725 – 3200 | ![]() | ||||||||||||||||
F106—-5 | Elcometer 106 Adhesion Tester – Scale 5 | 0.05 – 0.2 | 0.5 – 2.0 | 7.25 – 30 | ![]() | ||||||||||||||||
|
